Szczegóły Produktu:
Zapłata:
|
| Przesuw osi X: | 1000mm | Podróż tulei wrzeciona: | 150mm |
|---|---|---|---|
| Prędkość obrotowa wrzeciona: | 70-3600/(10 prędkości) 50 Hz | Stożek wrzeciona: | NT40 |
| Wymiar: | 2000*2000*2750mm | Moc wrzeciona: | 5HP |
Our Key Advantages:
1. Strenghtened machine fuselage which ensures the machine stability.
2. Japan NSK P4 level famous brand bearing.
3. Spindle tolerance can reach 0.002mm.
4. X axis is dovetail shape, Y and Z axis are square shape.
4.We have manufactured it since 1995. And customers feedback are all good, no matter domestic or oversea customers.
.
Parameters Sheet:

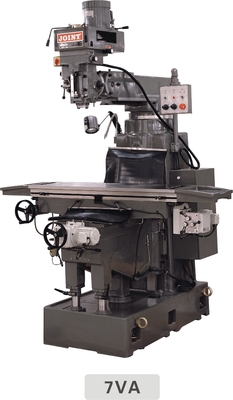

| Model | 7VA | |||
| Table size | mm | 1370*330*99 | ||
| Travel | X axis | mm | 1000 | |
| Y axis | mm | 500 | ||
| Z axis | mm | 500 | ||
| Travel of spindle quill | mm | 150 | ||
| Maximum distance from spindle nose to table | mm | 680 | ||
| Spindle | Rotation speed (Step speed milling head) |
50HZ | rpm | 60-3000 (10 grade) |
| 60HZ | rpm | 70-3600 (10 grade) | ||
| Rotation speed (Variable speed milling head) |
50HZ | rpm | 60-3250 | |
| 60HZ | rpm | 70-3900 | ||
| Rotation speed (Inverter speed milling head) |
50HZ | rpm | 0-4200 | |
| 60HZ | rpm | 0-4200 | ||
| Taper | NT40 | |||
| Rated power | HP | 5HP | ||
| Tilt angle | Forward and Backward | ±45° | ||
| Left and Right | ±90° | |||
| Dimension | mm | 2000*2000*2750 | ||
| Net weight | kg | 2400 | ||
Standard Accessories:
1. Taiwan original step speed milling head
2. Working light
3. Draw bar
4. Maual oil pump
5. Manual operation
6. Guide way cover
7. Tool and tool box
8. Clamping kits
9. Milling chuck (7pcs)
Optional accessories:
1. Water pump
2. M12 clamping kits
3. 6' vise
4. X axisp ower feed or Y axis power feed or Z axis elevating motor
5. X/Y two axis/ X/Y/Z three axis DRO
water tray vise Z axis elevating motor
